Shoocin™ Introducer Kit
Cardiology
Shoocin™ Introducer Kit

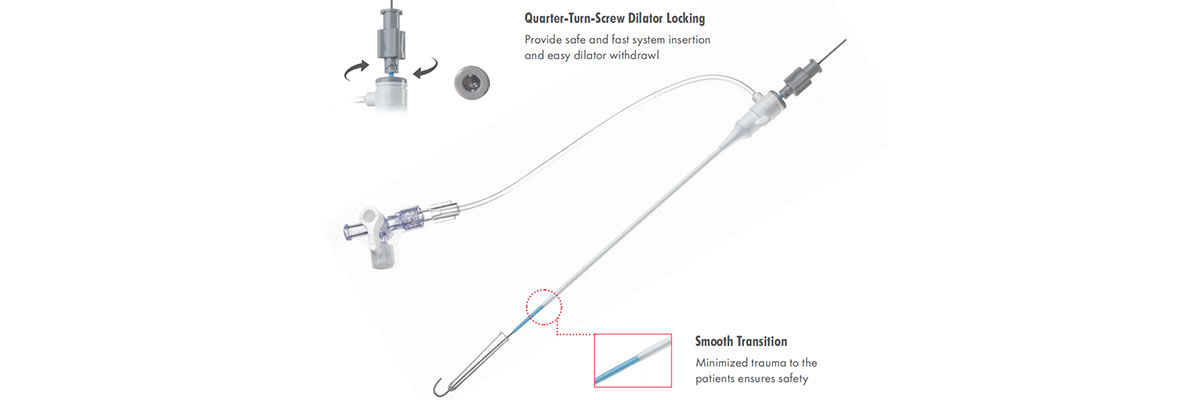

Shoocin™ Introducer Kit Details
- Well banlanced pushability and flexibility
- Gap/kink resistance
- Smooth transition from dilator to sheath
- Special designed dilator locking
Product Features
- Advanced material improves bendability and flexibility without gapping or kinking.
- Specially designed lock and silicon hemostatic valve provide outstanding hemostatic function while guaranteeing the operational ability for the catheter.
- Smooth tapered tip helps with easy access to the artery, reducing trauma to patients.
- Smooth transition from dilator to percutaneous sheath greatly reduces puncture resistance, providing easy and non-traumatic insertion.
- Minimized possibility of damaging tissue upon sheath entry, advancement and withdrawal, providing smoother and easier vascular access even through difficult access sites.
Product Benefits
- Easy entry and smoother navigation
- Good hemostatic performance
- Minimized trauma to patients
Product Ranges
- Femoral Sheath: 4-9F
- Radial Sheath: 4-7F
- Long Sheath: 6-8F
Full Kit Components
- Introducer Sheath (1)
- Dilator (1)
- Stainless Steel Guide Wire (1)
- Introducer Needle (1)
- Scalpel (1)
- Syringe (1)
The Introducer Kit can be customized by:
- Components include guidewire, percutaneous introducer needle, scalpel, syringe are optional based on request.
- Guidewire provides three types: stainless steel guidewire, nitinol guidewire, hydrophilic guidewire.
- Guidewire tip: straight, J tip, 135 angles.
- Introducer needle(IN) or intravascular catheter (IC) is optional. For Hydrophilic guidewire, IC is a mandatory set.
| Long Sheath | |||||||
| g Sheath Catalogue No. (Stainless Steel Guide Wire) |
Sheath I.D | Sheath Length |
Guide Wire Diameter |
Guide Wire Length |
Introducer Needle |
Scalpel | Syringe |
| LS061638-SJ70-IN18-K-S | 6F | 16cm | 0.038” | 70cm | 18G | 1 | 1 |
| LS062338-SJ70-IN18-K-S | 6F | 23cm | 0.038” | 70cm | 18G | 1 | 1 |
| LS071638-SJ70-IN18-K-S | 7F | 16cm | 0.038” | 70cm | 18G | 1 | 1 |
| LS072338-SJ70-IN18-K-S | 7F | 23cm | 0.038” | 70cm | 18G | 1 | 1 |
| LS081638-SJ70-IN18-K-S | 8F | 16cm | 0.038” | 70cm | 18G | 1 | 1 |
| LS082338-SJ70-IN18-K-S | 8F | 23cm | 0.038” | 70cm | 18G | 1 | 1 |
| Radial Sheath | |||||||
| Catalogue No. (Stainless Steel Guide Wire) | Sheath I.D. | Sheath Length | Guide Wire Diameter | Guide Wire Length |
Introducer Needle | Scalpel | Syringe |
| RS040518-SS45-IN20-K-S | 4F | 5cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS040521-SS45-IN20-K-S | 4F | 5cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS040525-SS45-IN20-K-S | 4F | 5cm | 0.025” | 45cm | 20G | 1 | 1 |
| RS040718-SS45-IN20-K-S | 4F | 7cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS040721-SS45-IN20-K-S | 4F | 7cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS040725-SS45-IN20-K-S | 4F | 7cm | 0.025” | 45cm | 20G | 1 | 1 |
| RS050518-SS45-IN20-K-S | 5F | 5cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS050521-SS45-IN20-K-S | 5F | 5cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS050525-SS45-IN20-K-S | 5F | 5cm | 0.025” | 45cm | 20G | 1 | 1 |
| RS050718-SS45-IN20-K-S | 5F | 7cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS050721-SS45-IN20-K-S | 5F | 7cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS050725-SS45-IN20-K-S | 5F | 7cm | 0.025” | 45cm | 20G | 1 | 1 |
| RS060518-SS45-IN20-K-S | 6F | 5cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS060521-SS45-IN20-K-S | 6F | 5cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS060525-SS45-IN20-K-S | 6F | 5cm | 0.025” | 45cm | 20G | 1 | 1 |
| RS060718-SS45-IN20-K-S | 6F | 7cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS060721-SS45-IN20-K-S | 6F | 7cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS060725-SS45-IN20-K-S | 6F | 7cm | 0.025” | 45cm | 20G | 1 | 1 |
| RS041121-SS45-IN20-K-S | 4F | 11cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS042421-SS70-IN20-K-S | 4F | 24cm | 0.021” | 70cm | 20G | 1 | 1 |
| RS051121-SS45-IN20-K-S | 5F | 11cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS052421-SS70-IN20-K-S | 5F | 24cm | 0.021” | 70cm | 20G | 1 | 1 |
| RS061121-SS45-IN20-K-S | 6F | 11cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS062421-SS70-IN20-K-S | 6F | 24cm | 0.021” | 70cm | 20G | 1 | 1 |
| RS070521-SS45-IN20-K-S | 7F | 5cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS070521-SS70-IN20-K-S | 7F | 5cm | 0.021” | 70cm | 20G | 1 | 1 |
| RS071121-SS45-IN20-K-S | 7F | 11cm | 0.021” | 45cm | 20G | 1 | 1 |
| RS072421-SS70-IN20-K-S | 7F | 24cm | 0.021” | 70cm | 20G | 1 | 1 |
| RS070718-SS45-IN20-K-S | 7F | 7cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS070718-SS70-IN20-K-S | 7F | 7cm | 0.018” | 70cm | 20G | 1 | 1 |
| RS071118-SS45-IN20-K-S | 7F | 11cm | 0.018” | 45cm | 20G | 1 | 1 |
| RS071118-SS70-IN20-K-S | 7F | 11cm | 0.018” | 70cm | 20G | 1 | 1 |
| Femoral Sheath | |||||||
| Catalogue No. (Stainless Steel Guide Wire) |
Sheath I.D | Sheath Length | Guide Wire Diameter |
Guide Wire Length |
Introducer Needle |
Scalpel | Syringe |
| FS040525-SS45-IN20-K-S | 4F | 5cm | 0.025” | 45cm | 20G | 1 | 1 |
| FS041125-SS45-IN20-K-S | 4F | 11cm | 0.025” | 45cm | 20G | 1 | 1 |
| FS041135-SJ45-IN18-K-S | 4F | 11cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS050535-SJ45-IN18-K-S | 5F | 5cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS050538-SJ45-IN18-K-S | 5F | 5cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS051135-SJ45-IN18-K-S | 5F | 11cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS051138-SJ45-IN18-K-S | 5F | 11cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS060535-SJ45-IN18-K-S | 6F | 5cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS060538-SJ45-IN18-K-S | 6F | 5cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS061135-SJ45-IN18-K-S | 6F | 11cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS061138-SJ45-IN18-K-S | 6F | 11cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS070535-SJ45-IN18-K-S | 7F | 5cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS070538-SJ45-IN18-K-S | 7F | 5cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS071135-SJ45-IN18-K-S | 7F | 11cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS071138-SJ45-IN18-K-S | 7F | 11cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS080535-SJ45-IN18-K-S | 8F | 5cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS080538-SJ45-IN18-K-S | 8F | 5cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS081135-SJ45-IN18-K-S | 8F | 11cm | 0.035” | 45cm | 18G | 1 | 1 |
| FS081138-SJ45-IN18-K-S | 8F | 11cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS090538-SJ45-IN18-K-S | 9F | 5cm | 0.038” | 45cm | 18G | 1 | 1 |
| FS091138-SJ45-IN18-K-S | 9F | 11cm | 0.038” | 45cm | 18G | 1 | 1 |
